Plaswood Venetian 50mm

How to measure Inside (Recess) blinds:

• Ensure that the recess your blinds is going into is not obstructed in any way so the blind can hang freely when fully extended. Look out for protruding window handles and tiles!
• Verify you have 70mm inside top wall recess available for the blind head rail to be mounted onto – refer to illustration to the left.
• Measure at various places (J,K,L) as illustrated and input the shortest width dimension.
• Measure at various places (G,H,I) as illustrated and input the longestshortest drop dimension.
• Verify you have 70mm inside top wall recess available for blind head rail to be mounted onto. ( Z )

  Note: We will make your blind to fit into the recess perfectly. Do not make any deductions to the measurements as our factory will make the allowances required for recessed blinds.

How to measure Outside (Facefix) blinds:

• Decide how much you want to overlap the blind on all sides - we recommend this should be at least 50mm - 100mm each side in most instances.
• Carefully measure the width of D, E and F (see the diagram) and the drop from A, B and C.

Blinds come in two different kinds, which will suit different needs. Do you want the blind to fit inside the window (Recess) or outside (Facefix)?

Outside (Facefix) blinds are easier to install, ideal if you want to hide features around the window and does not require exact measuring.

Inside (Recess) blinds provides a neat appearance, but requires exact measuring and a top recess large enough to accommodate the size of the head rail.

We are able to provide our customers an Express Manufacturing service (2 days manufacturing) but unfortunately based on:

• Client is responsible for checking measurements, once processed we will be unable to change.
• Service is only available between Monday and Thursday.
• Orders need to be processed and payment cleared (Credit Cards are immediate) before 10:30.
• Service is only available with specified Venetian & Roller ranges.
• Subject to stock availability.
• Service will not be available during peak season (October & November) due to manufacturing constraints.
• Express service is not possible if automation is selected as controller.

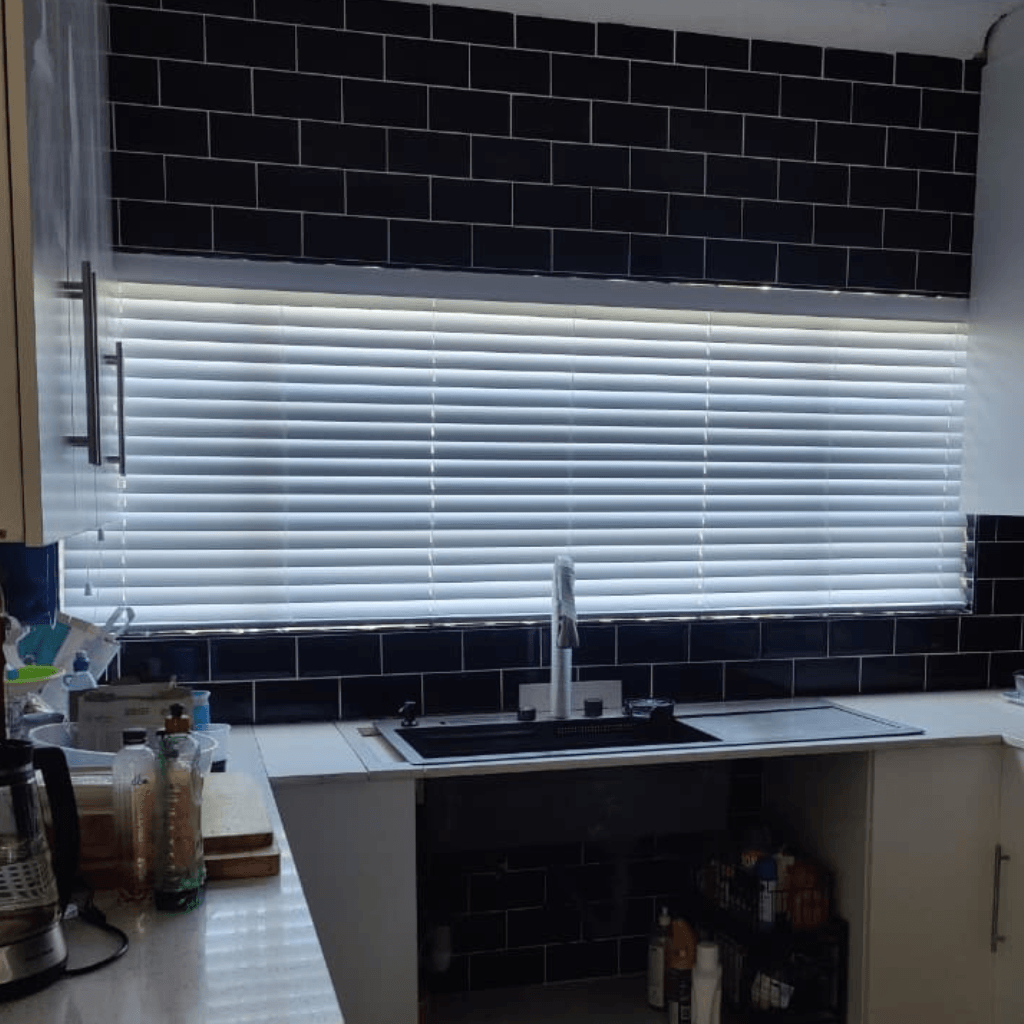

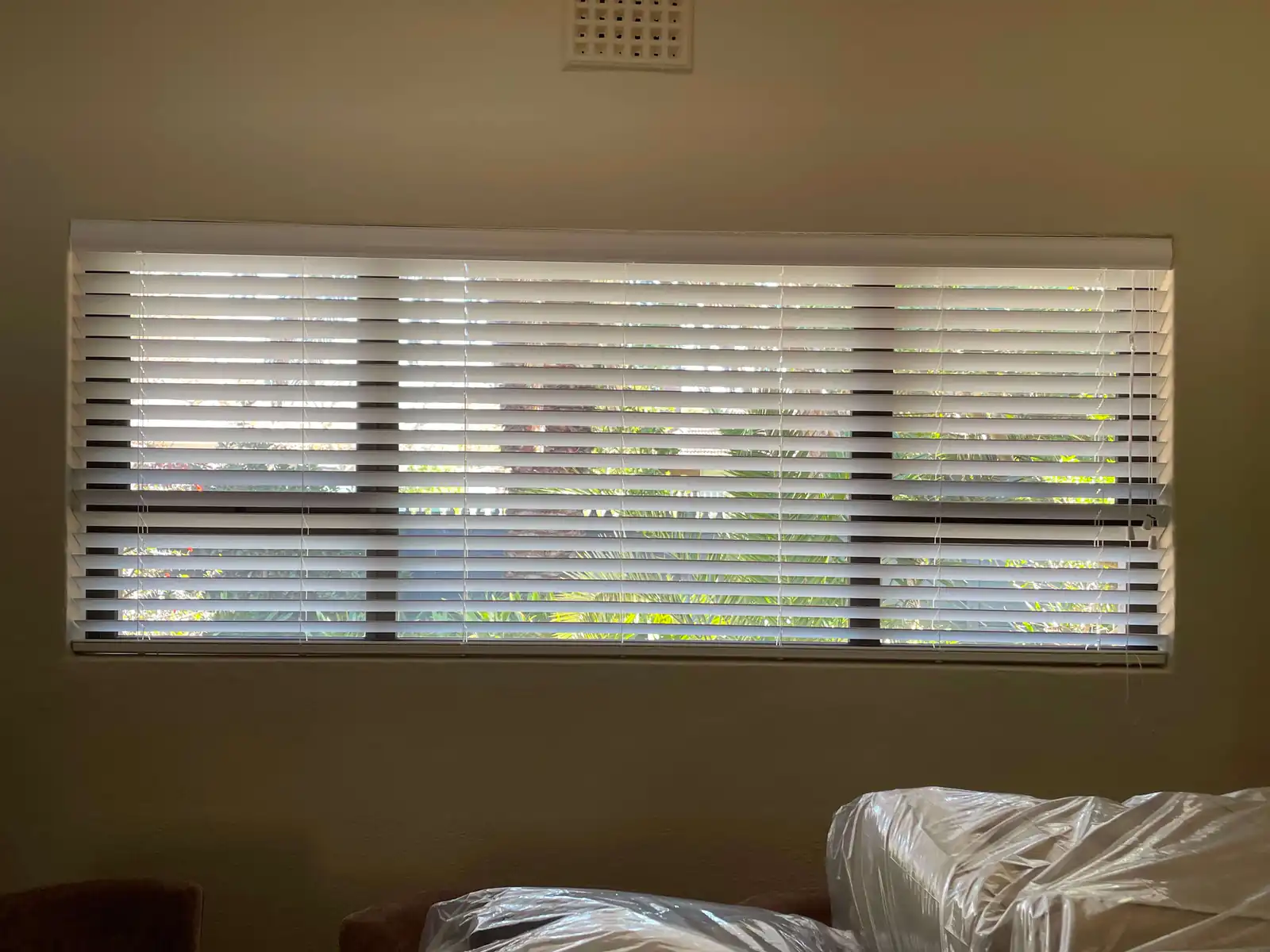

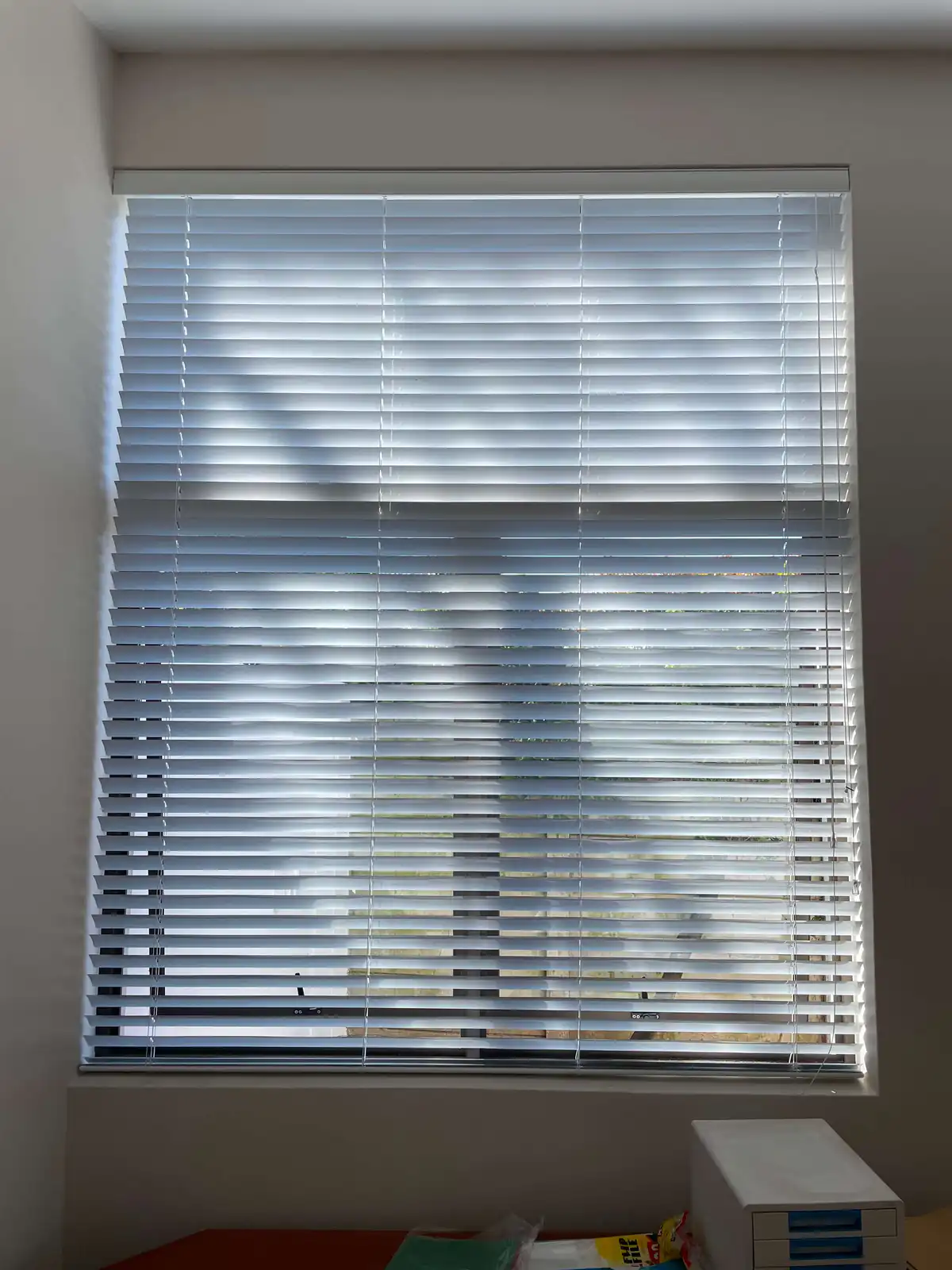

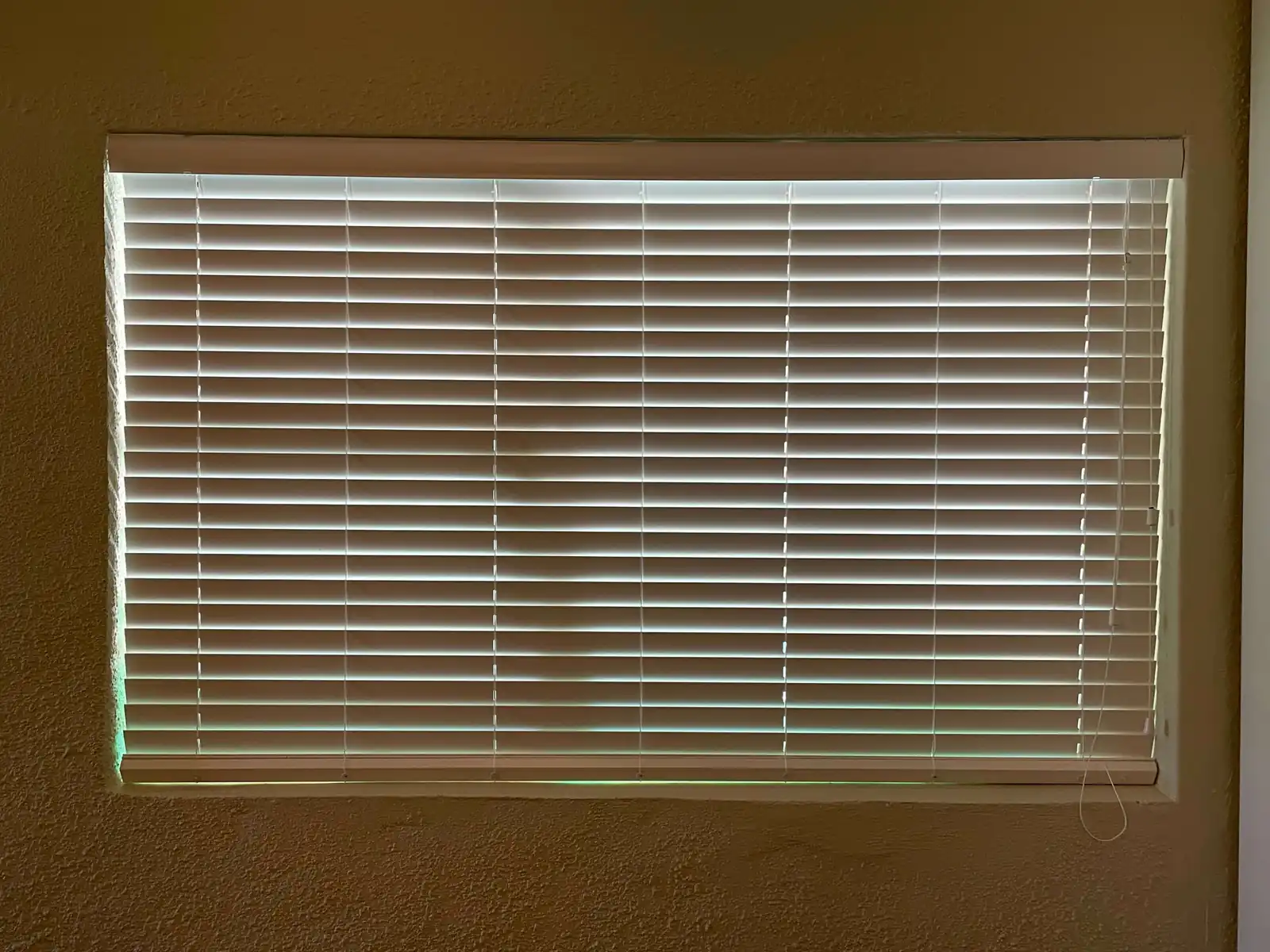

Plaswood Venetian Blinds comes in a variety of colours and textures. Available in 50mm slats which suit any window size and are the perfect addition to any home or office. Like all of our blinds they come packaged with all fixtures and fittings.

Characteristics and advantages of Plaswood Venetian blinds:

• Easy to clean.
• Washable.
• More cost effective than real wood.
• Wood grain look.
• High tolerance to direct sunlight and moisture.

New Plaswood Technical Data Sheet:

• Plaswood bottom rail.
• Material – Synthetic.
• Width – 50.1mm +/-0.2mm
• Thickness – 3.1mm +/-0.1mm
• Weight – 80-86 g/m
• Surface Treatment – Micro transcription/UV treated.
• Health & Saftey – Conforms to US FDA hygiene/Safety Specifications.
• Accelerated Weathering – SGS Gray scale test result of 4-5.

Stacking Height:
